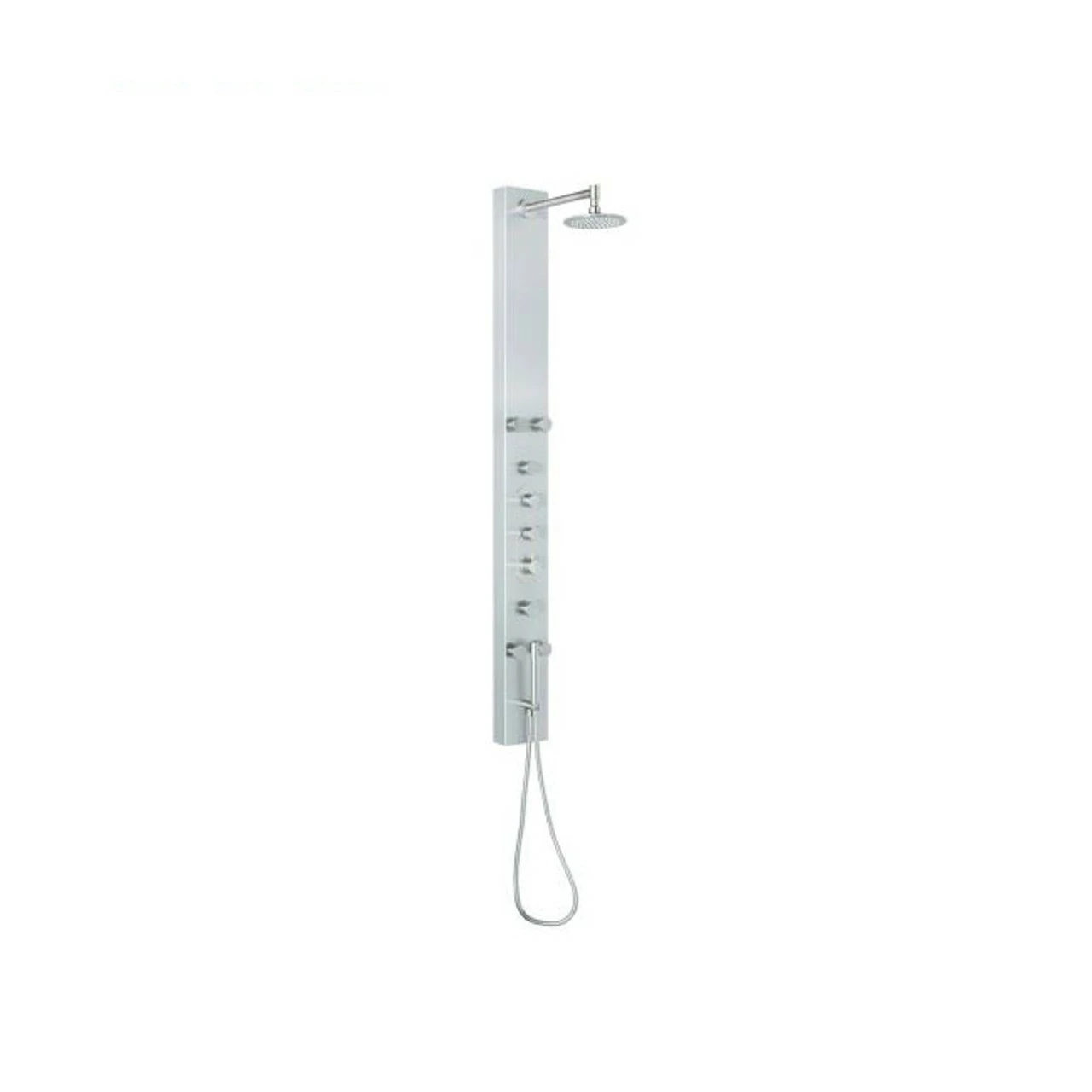

Vigo Dilana Shower Panel System With Hose, Hand Shower, Six Body Sprays, And Shower Head

Vigo Dilana Shower Panel System with Hose, Hand Shower, Six Body Sprays, and Shower Head

Specification Sheet:

VIGO™ VG08001 Features:

• Covered under VIGO’s™ limited lifetime residential or 1 year commercial warranty
• Constructed of extruded stainless steel to be durable and corrosion resistant
• Single function rain shower head
• Hot and cold integrated thermostatic valve control
• 3Divert ValveTM controls water, volume, and temperature operations
• Three knob handles control volume, temperature, and water transfer functions
• Integrated diverter is located on the valve trim
• Swinging temperature dial allows for pin-point water control
• Includes a pre-set safety stop with override capability
• Six fully adjustable stainless steel body spray massage jets
• Thermostatic cartridge – handles temperature control independently
• Stainless steel hand shower with chrome-plated hose
• Shower package includes: Shower panel, Shower head, hand shower, body sprays
• Designed to easily install with standard U.S. plumbing connections
• All hardware required for installation is included

VIGO™ VG08001 Specifications:

• Panel Height: 66-7/8″ (measured from bottom to top of panel)
• Width: 6-1/4″ (measured from left to right rim of panel)
• Shower arm length : 12-7/8″ (measured from wall to furthest point on panel)
• Massage Body Sprays: 6
• Shower Head: Single function
• Hand Shower: Single function
• Flow Rate: 2.5 GPM
